Large-Diameter Insertion Electromagnetic Flowmeter: Design, Performance, Applications, and Selection Guide

Introduction

Accurate flow measurement becomes increasingly difficult as pipeline diameter increases. A full-bore electromagnetic flowmeter can provide excellent measurement performance, but installing a meter on a DN1200, DN1600, or DN2400 pipeline may require extensive shutdowns, major civil work, large lifting equipment, costly flanges, and long project schedules. In many water, wastewater, industrial utility, mining, and process applications, the principal challenge is not whether electromagnetic measurement is suitable, but how to introduce reliable sensing into a very large pipeline without creating excessive installation cost or operational disruption.

The VE15 Insertion Electromagnetic Flowmeter is developed for this specific requirement. It is an insertion or plug-in electromagnetic flowmeter designed for large-diameter pipelines from DN200 to DN4000, corresponding approximately to 8 to 160 inches. The instrument measures the velocity of electrically conductive liquids at a carefully selected point in the pipe and calculates volumetric flow using the known pipe diameter and application parameters.

Based on Faraday’s law of electromagnetic induction, the VE15 has no moving parts and does not place a large meter body across the complete flow section. This design helps minimize additional pressure loss and makes retrofit installation practical on existing transmission mains, cooling-water circuits, irrigation systems, wastewater outfalls, and process pipelines. It is particularly valuable when a conventional full-bore meter would be technically possible but economically or logistically impractical.

The instrument combines an insertion probe, electromagnetic sensing electrodes, a magnetic excitation system, and a microprocessor-based converter. Depending on configuration, it can provide 4–20 mA and pulse outputs, as well as Modbus RS-485, HART, or Profibus communication. Available protection levels include IP65, IP67, and IP68, while explosion-proof Ex d versions can be supplied for designated hazardous areas.

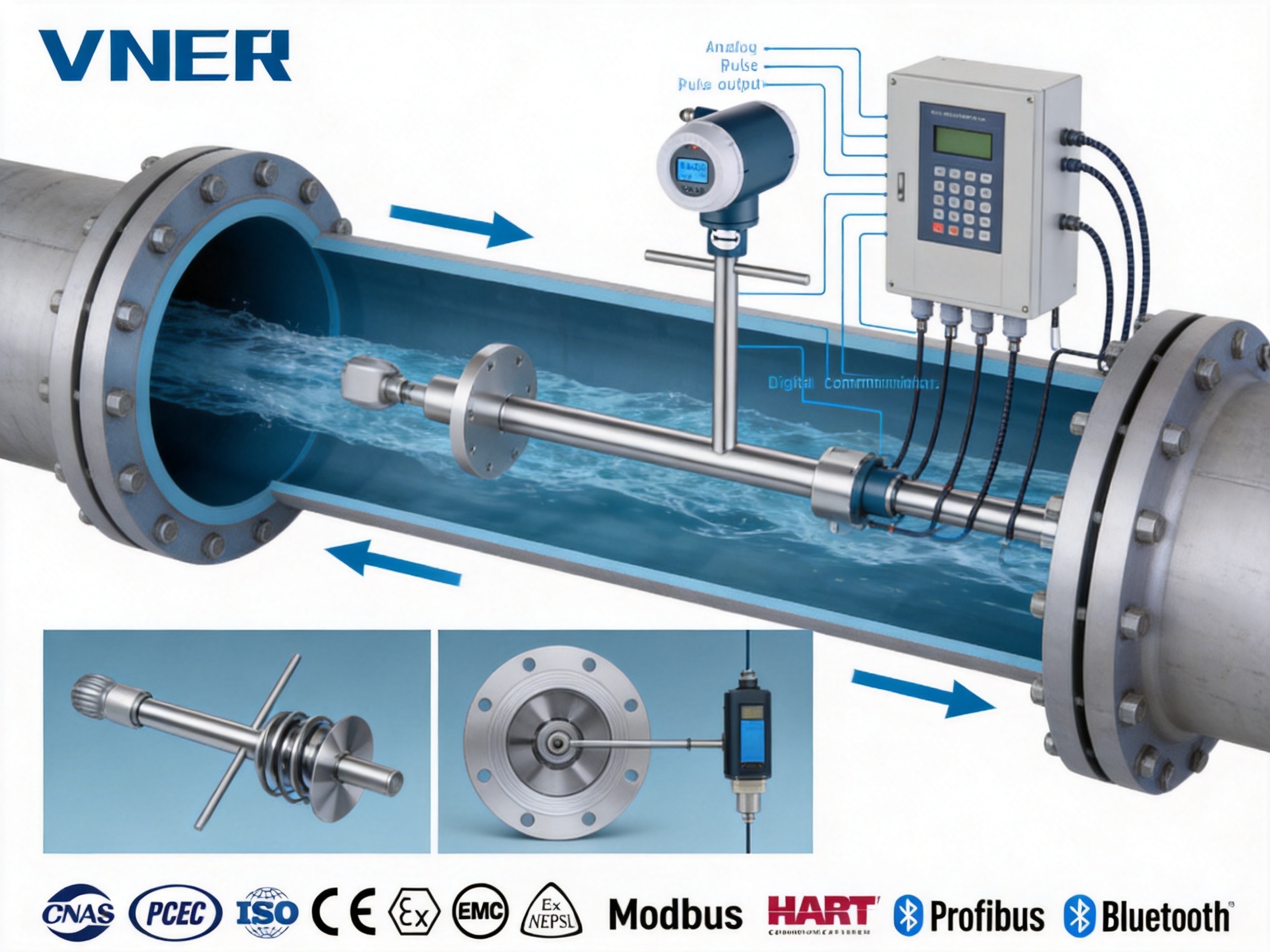

VE15 Insertion Electromagnetic Flowmeter

Operating Principle

The measurement principle of the VE15 is electromagnetic. When an electrically conductive liquid moves through a magnetic field, a voltage is induced in the liquid. The magnitude of this voltage is proportional to the average velocity of the liquid crossing the magnetic field. The insertion probe contains the excitation and sensing components required to establish this field and detect the resulting signal.

In practical operation, the converter applies a controlled magnetic field around the measuring area of the probe. As conductive liquid flows through the field, the electrodes detect a small induced voltage. The converter amplifies and processes this signal, compensates for relevant configuration parameters, and converts the measured velocity into a volumetric flow rate. Because the internal pipe diameter is entered during configuration, the instrument can calculate the flow rate for the complete pipeline even though the sensing element is installed through the pipe wall rather than occupying the entire cross-section.

Faraday’s law provides a measurement method that is largely independent of liquid density, viscosity, and pressure. This is a major advantage over many mechanical flowmeters. A change in viscosity does not directly change the basic electromagnetic relationship between liquid velocity and induced voltage. Similarly, there are no bearings, gears, turbine blades, or paddle wheels whose mechanical movement must respond to the process stream.

The medium must have adequate electrical conductivity for electromagnetic measurement. Water, wastewater, cooling water, many chemical solutions, pulp suspensions, slurries, and other conductive liquids are generally suitable. Nonconductive liquids such as many hydrocarbon fuels, refined oils, and some solvents require a different measurement technology unless their conductivity falls within the instrument’s usable range.

The insertion configuration is especially useful in large pipelines because it avoids the need to manufacture and transport a complete meter tube with the same diameter as the pipeline. A full-bore meter for a very large line can be heavy, expensive, and difficult to align. By contrast, an insertion probe can be installed through a prepared mounting connection, reducing the physical size of the instrument and simplifying access to the measurement point.

Product Scope and Main Specifications

The VE15 is intended for line flow monitoring, distribution balancing, process control, water allocation, and energy optimization in large-diameter pipelines. Its nominal size range extends from DN200 to DN4000. The standard measurement velocity range is 0.5 to 8 m/s, although the final operating range and performance depend on installation quality, liquid conductivity, process conditions, and configuration.

Item	Specification
Product type	Insertion or plug-in electromagnetic flowmeter
Measuring principle	Electromagnetic measurement based on Faraday’s law
Nominal pipe size	DN200 to DN4000, approximately 8 to 160 inches
Measured media	Electrically conductive liquids, including water, wastewater, slurries, pulp, sludge, and selected chemicals
Flow velocity range	0.5 to 8 m/s
Accuracy	±1.0% or ±1.5% of rate, depending on model and application
Repeatability	±0.33% or ±0.5%, depending on configuration
Connection options	Flanged or plug-in insertion mounting
Connection standards	DIN and ANSI/ASME options
Nominal pressure rating	Up to 1.6 MPa, subject to configuration
Medium temperature	-40 to +200°C, depending on probe and lining configuration
Body material	Stainless steel 304
Wetted materials	PTFE lining with 316L stainless steel or Hastelloy electrodes
Protection class	IP65, IP67, or IP68, depending on version
Explosion protection	Ex d versions available for suitable applications
Outputs	4–20 mA and pulse
Digital communication	Modbus RS-485, HART, and Profibus options
Power supply	24 V DC or 220 V AC
Electrical interface	M20 × 1.5 or 1/2"-14 NPT, depending on version

These values should be treated as selection data rather than a substitute for project-specific sizing. The final specification should confirm liquid conductivity, pressure, temperature, pipe material, pipe wall thickness, insertion connection, lining, electrode material, grounding method, hazardous-area classification, and required communication protocol.

Why Insertion Measurement Is Valuable on Large Pipelines

Reduced Installation Complexity

A full-bore flowmeter must match the complete nominal diameter of the pipeline. As the pipe becomes larger, the meter body, flanges, lining, transportation requirements, and installation equipment become more demanding. Removing a large section of an existing pipeline may also require a long shutdown and temporary bypass arrangements.

The insertion design reduces the amount of equipment installed directly in the pipeline. A prepared nozzle, saddle, valve assembly, or flange connection can provide access for the probe. This makes the VE15 suitable for retrofit projects in which the pipeline already exists and a complete section replacement would create unacceptable cost or interruption.

Minimal Additional Pressure Loss

The VE15 does not use a restriction, orifice plate, venturi throat, turbine rotor, or internal moving assembly. The probe is positioned in the flow, but it does not form a complete obstruction across the pipe. As a result, the additional pressure loss is normally very small compared with differential-pressure devices or mechanical meters.

Lower pressure loss can support energy savings in pumping systems. Even a small reduction in hydraulic resistance can become significant when a pump operates continuously at high flow. This benefit is especially relevant for raw-water transmission, district cooling, irrigation, and industrial circulation networks where the total annual pumping energy is substantial.

Compatibility with Difficult Liquids

Electromagnetic measurement is well suited to liquids containing suspended solids, fibers, or moderate levels of sludge. Since there are no moving parts to jam or wear, the instrument can be used with wastewater, pulp suspensions, tailings, and other conductive process liquids that might shorten the service life of mechanical flowmeters.

The suitability of the materials must still be verified. Abrasive mining slurries may require special consideration of probe exposure and electrode material. Chemically aggressive media may require PTFE lining and Hastelloy electrodes. The application engineer should evaluate solids concentration, particle size, abrasiveness, chemical compatibility, temperature, and cleaning procedures before final selection.

Low Mechanical Maintenance

Mechanical meters depend on moving components that may require inspection, lubrication, replacement, or recalibration after prolonged service. The VE15 has no rotating impeller or internal bearing system. Routine maintenance is therefore focused on the converter, electrical connections, grounding, enclosure condition, probe integrity, and verification of the installation rather than mechanical wear components.

This can be a practical advantage in remote pumping stations, buried pipeline chambers, irrigation networks, and wastewater facilities where routine access is difficult. The use of IP-rated housing and optional IP68 configurations can further support installations exposed to moisture, flooding, or temporary submersion when the selected version is appropriate.

Measurement Performance and Stability

The VE15 is designed to provide stable and repeatable measurement in changing industrial conditions. Its microprocessor-based converter processes the low-level electrode signal and applies controlled excitation to improve signal quality. Low-frequency rectangular excitation helps reduce certain forms of interference and supports reliable measurement in electrically noisy environments.

The specified accuracy is available in different model or application classes, generally ±1.0% or ±1.5% of rate. Repeatability may be ±0.33% or ±0.5%, depending on the selected configuration. Accuracy in the field is influenced not only by the electronics but also by the quality of the installation. Probe insertion depth, orientation, pipeline filling, grounding, straight-run conditions, upstream disturbances, and the velocity profile all affect the final result.

In a large pipeline, the velocity profile may not be uniform. Elbows, tees, reducers, pumps, valves, partially open gates, and other disturbances can create swirl or asymmetric flow. A single-point insertion meter must be installed at a location where the measured velocity is representative of the average pipeline velocity, or the instrument must be configured and calibrated in accordance with an approved engineering method.

For this reason, the VE15 should be considered a complete engineered measurement solution rather than an isolated sensor. Correct pipe data, a suitable mounting location, proper grounding, correct signal cable routing, and appropriate configuration are essential for achieving the specified performance.

Materials and Environmental Protection

The standard body material is stainless steel 304, which provides a practical balance of mechanical strength, corrosion resistance, availability, and cost for many water and industrial applications. Where the process environment contains more aggressive chemicals or chloride exposure, the material selection should be reviewed by the project engineer.

The wetted construction can include a PTFE lining and electrodes made from 316L stainless steel or Hastelloy. PTFE is widely used where chemical resistance and temperature capability are required. 316L electrodes are suitable for many water, wastewater, and general industrial services. Hastelloy electrodes can be selected when the medium is more chemically aggressive or when the application requires greater resistance to corrosion.

The available IP65, IP67, and IP68 protection classes allow the instrument to be adapted to different field conditions. IP65 protection is suitable for many outdoor installations where the enclosure may be exposed to dust and water jets. IP67 provides protection against temporary immersion under specified conditions. IP68 is appropriate for applications requiring a higher level of protection, including certain buried chambers or locations that may be flooded.

Ex d explosion-proof versions are available for hazardous locations when the complete instrument and installation comply with the required classification. Selection must account for the zone or division, gas group, temperature class, cable entry, enclosure arrangement, local certification requirements, and installation practices. Explosion protection should never be assumed solely from the presence of an Ex designation; the nameplate and certification documents must match the project conditions.

Converter, Outputs, and Communication

The microprocessor-based converter is responsible for signal amplification, flow calculation, display functions, parameter configuration, self-diagnosis, and communication. A programmable low-frequency rectangular excitation system helps the instrument maintain measurement stability while limiting interference and unnecessary power consumption.

The standard output arrangement includes a 4–20 mA analog signal and a pulse output. The analog signal can be connected to a PLC, DCS, flow controller, chart recorder, or remote monitoring system. The pulse output can be used for totalized volume, batching, or external counting functions when configured correctly.

Modbus RS-485, HART, and Profibus communication options allow integration into modern plant automation systems. Through digital communication, operators can access measured flow, total flow, diagnostic information, alarm conditions, configuration parameters, and other available variables. This supports centralized monitoring through SCADA, DCS, or PLC platforms.

The available power supplies include 24 V DC and 220 V AC. The correct power option should be selected according to the plant’s control architecture, instrument power distribution, hazardous-area requirements, and backup-power strategy. Electrical interfaces may include M20 × 1.5 or 1/2"-14 NPT connections, depending on the selected version and regional requirements.

Comparison with Alternative Flowmeter Technologies

Compared with Full-Bore Electromagnetic Flowmeters

A full-bore electromagnetic flowmeter measures the average velocity across the entire pipe section and can achieve excellent accuracy when correctly installed. It is often preferred for custody transfer, highly regulated applications, and lines where a factory-calibrated meter tube is required. However, the cost and physical size of a full-bore meter increase rapidly with pipe diameter.

The VE15 provides a more economical alternative for many monitoring and control applications. Its smaller installation footprint, lower transportation burden, and retrofit capability can reduce project disruption. It is particularly attractive when the line is already in service and the operator needs a reliable measurement point without replacing a large pipe section.

The trade-off is that insertion measurement is more sensitive to installation location and velocity-profile conditions. For applications requiring the highest possible custody-transfer accuracy, a full-bore meter or a multi-point insertion arrangement may be more appropriate. For network monitoring, balancing, pump control, leak detection, and process management, the VE15 can offer a strong combination of performance and practicality.

Compared with Turbine Flowmeters

Turbine flowmeters use a rotor that turns in response to liquid velocity. They can provide good accuracy in clean, low-viscosity liquids, but the rotor is vulnerable to wear, fouling, and damage from suspended solids. The meter may also create pressure loss and require upstream filtration or regular maintenance.

The VE15 has no rotor and is therefore better suited to wastewater, sludge, pulp, and liquids containing suspended particles. It also avoids mechanical calibration changes caused by bearing friction or rotor wear. For large pipelines, the insertion design further eliminates the need for a large mechanical meter body.

Compared with Differential-Pressure Flowmeters

Orifice plates, venturi tubes, and other differential-pressure devices measure flow through a relationship between pressure drop and velocity. Orifice plates are relatively simple, but they permanently restrict the flow and can generate significant energy loss. Differential-pressure systems also require pressure impulse lines, transmitters, and compensation for density or process changes.

The VE15 creates little additional pressure loss and measures conductive liquids without requiring a throttling element. It is therefore attractive where pumping energy, suspended solids, or variable liquid properties make differential-pressure measurement less desirable.

Compared with Ultrasonic Flowmeters

Ultrasonic flowmeters can provide nonintrusive measurement and may be installed externally on the pipe. They are useful where the liquid is compatible with acoustic measurement and the pipe wall, lining, and flow profile are suitable. However, signal quality can be affected by pipe material, lining, air bubbles, solids concentration, acoustic coupling, and installation surface condition.

The VE15 makes direct electrical measurement in the liquid and can be a robust choice for conductive water and slurry services. It requires a penetration or prepared insertion connection, but it can offer a stable installed solution where external ultrasonic coupling is difficult or inconsistent.

Compared with Vortex and Swirl Flowmeters

Vortex and swirl flowmeters are generally used for gases, steam, and clean or moderately clean liquids. They require a defined internal flow structure and are often selected for process lines where their operating principle matches the medium and pipe size.

The VE15 is specifically intended for conductive liquids and is more suitable for very large water, wastewater, and slurry pipelines. Its low obstruction design and tolerance for suspended solids make it more appropriate for applications outside the normal range of vortex or swirl meters.

Manufacturing Strengths and Engineering Capability

Jiangsu Vner Electronic Technology Co., Ltd. is a specialized industrial flowmeter manufacturer based in Yangzhou, China. Since 2011, the company has developed flow measurement products for liquid, gas, and slurry applications. Its product portfolio includes electromagnetic, Coriolis, vortex, swirl, turbine, thermal mass, ultrasonic, and metal tube rotameter technologies.

The company operates approximately 23,000 square meters of modern facilities across three plants and maintains a technical team of more than 150 people. Its experience includes more than 2,000 engineering projects delivered to customers in over 30 countries. This project exposure is important because large-pipeline flow measurement is rarely a simple catalog purchase. Correct selection requires understanding the process medium, pipe arrangement, operating conditions, instrumentation architecture, and maintenance environment.

Manufacturing control is supported by in-house calibration, certified quality processes, engineering-based sizing and selection, and increasingly automated production methods. These capabilities help create a more consistent relationship between design data, component assembly, calibration results, and final product documentation.

In-House Calibration

Calibration is a central part of flowmeter manufacturing. The converter, sensor, excitation circuit, electrode signal processing, and flow calculation must work together as a complete measuring system. In-house calibration enables the manufacturer to verify performance, identify abnormal signal behavior, record test results, and maintain traceability before shipment.

For insertion flowmeters, calibration and verification are particularly valuable because the installed result depends on both instrument characteristics and pipeline conditions. Factory testing cannot reproduce every field installation, but it can confirm the stability and repeatability of the instrument under controlled conditions. The resulting documentation gives engineering teams a reference point for commissioning and future maintenance.

Surface-Mount and Automated Electronics Production

The use of SMD components and SMT production technology supports compact, repeatable, and reliable electronic assemblies. Automated placement and controlled soldering processes can reduce variation compared with entirely manual assembly. They also allow efficient production of microprocessor-based converter boards with consistent component positioning and controlled manufacturing parameters.

Reliable electronics are important in electromagnetic measurement because the electrode signal is relatively small and must be separated from electrical noise. Stable excitation, precise signal conditioning, effective grounding, and robust circuit assembly all contribute to dependable operation in industrial environments.

Engineering-Based Product Selection

Large pipeline projects often fail to achieve expected performance because the instrument is selected solely by nominal pipe size. A professional manufacturer must also consider conductivity, minimum and maximum flow, liquid temperature, pressure, solids content, pipe orientation, available straight runs, installation angle, grounding, and the required protection level.

Vner’s engineering-oriented approach supports selection beyond the basic product code. The company can assist EPC contractors, end users, and OEM partners with sizing, material selection, communication requirements, mounting arrangements, and application documentation. This reduces the risk of choosing a technically incompatible configuration for a demanding service.

Product Breadth and Project Support

Because the company manufactures multiple flowmeter technologies, it can evaluate the measurement requirement from a broader perspective. A customer may require electromagnetic measurement for wastewater, Coriolis measurement for mass flow, vortex measurement for steam, turbine measurement for clean liquids, thermal mass measurement for gases, or ultrasonic measurement for selected large lines.

This product breadth is useful for projects involving several media and process areas. Instead of coordinating unrelated suppliers for every instrument type, an EPC contractor or industrial end user may obtain a more unified technical and documentation package. It can also simplify spare-parts planning, training, communication integration, and long-term service coordination.

Typical Applications

Municipal Water Transmission

Raw-water transmission mains often have large diameters and operate continuously. A VE15 installed on a DN1200 pipeline can provide flow data for pump control, intake management, treatment-plant balancing, leak detection, and energy optimization. The insertion concept can reduce civil work compared with installing a full-bore meter, particularly when the pipeline is already buried or connected to critical infrastructure.

In treated-water networks, large flowmeters are used at treatment-plant outlets, transmission stations, reservoirs, pressure zones, and district metering boundaries. Flow data can support water accounting by comparing production, transmission, and consumption. It can also help identify abnormal night flow, bursts, leakage, or unauthorized use.

Wastewater and Effluent Measurement

Wastewater may contain suspended solids, fibers, sludge, grease, and chemically active components. The VE15’s absence of moving parts reduces the risk of mechanical blockage or rotor damage. A PTFE-lined probe and suitable electrode material can be selected for aggressive or chemically variable service.

At a wastewater outfall, continuous flow data may be used for process control, regulatory reporting, pump operation, and treatment efficiency analysis. The selected IP rating is important because meter chambers may be damp, submerged, or subject to washdown. Where the installation is in a classified area, an appropriate explosion-proof version and certified installation method must be used.

Cooling-Water Systems

Steel mills, petrochemical plants, power stations, and chemical facilities often use large closed-loop or open-loop cooling-water systems. Flow distribution must be monitored to ensure that furnaces, heat exchangers, reactors, compressors, and other major consumers receive sufficient cooling.

VE15 meters installed on DN800 to DN1600 cooling-water lines can support system balancing and help operators identify pump degradation, blocked strainers, partially closed valves, or changing demand. Since the flowmeter introduces minimal additional resistance, it can be installed without materially increasing the pumping burden.

Irrigation and Water Resources

Regional irrigation systems often include long trunk pipelines and distribution branches. Reliable master metering is necessary for water allocation, billing, seasonal planning, and loss analysis. The VE15 can be installed at strategic points on existing pipelines, reducing interruption to water delivery.

For irrigation applications, designers should confirm that the pipe remains full at the measuring location and that the selected site is not affected by excessive air accumulation, severe turbulence, or intermittent flow. Correct installation is essential because open-channel conditions or partially filled pipes are not suitable for a standard insertion electromagnetic measurement arrangement.

Pulp and Paper

Pulp suspensions, white liquor, black liquor, mill effluent, and process water can present challenging measurement conditions. Suspended fibers and solids may foul or damage mechanical meters. Electromagnetic measurement is often preferred because the meter does not require a rotor and can handle conductive suspensions.

Electrode and lining selection should reflect the chemical and thermal properties of the specific liquor or suspension. The process engineer should also evaluate abrasion, cleaning chemicals, fiber accumulation, and the possibility of coating on the probe surface.

Mining and Metals

Mining operations use large pipelines for process water, tailings, concentrate transport, return water, and slurry disposal. The VE15 can monitor conductive slurries and water flows in large-diameter lines, supporting pump control, production accounting, and tailings management.

Abrasive service requires special attention. The insertion probe is exposed to the process stream, so solids concentration, particle size, velocity, and mineral hardness should be evaluated. In some cases, a different material or protective arrangement may be required. The instrument can still be advantageous over mechanical meters, but material selection and inspection planning are essential.

Installation Guidelines

Pipeline Location

The selected installation point should normally be a section of pipe that remains completely full during all operating conditions. Locations immediately downstream of a pump discharge, control valve, elbow, tee, reducer, or partially open valve may contain unstable velocity profiles. Where possible, the meter should be installed in a straight section with adequate upstream and downstream distance.

The exact straight-run requirement depends on the piping arrangement, flow velocity, meter configuration, and applicable engineering standards. If the pipeline cannot provide a long undisturbed section, the manufacturer or project engineer should assess whether a correction method, alternative location, or multi-point measurement arrangement is necessary.

Probe Orientation and Insertion Depth

The probe must be aligned with the intended flow direction and inserted to the specified depth. Incorrect orientation may cause the electrodes to sense a nonrepresentative velocity or may expose the probe to unnecessary mechanical stress. In large pipes, a small error in insertion depth can affect the relationship between the local measured velocity and the average velocity across the pipe.

The mounting connection must be mechanically suitable for the pipeline pressure and temperature. A valve assembly may be required for hot-tap installation or for maintenance while the line remains pressurized. The connection must be properly welded, inspected, pressure-rated, and aligned before the flowmeter is installed.

Grounding and Electrical Installation

Electromagnetic flowmeters require a stable electrical reference between the converter, the process liquid, and the pipeline environment. Grounding and bonding should follow the manufacturer’s instructions and the applicable electrical standards. Poor grounding, damaged cables, incorrect shield termination, or routing next to high-power equipment can create unstable signals.

Signal cables should be protected from mechanical damage and separated from high-voltage power cables where possible. Cable glands must match the enclosure protection class. In hazardous areas, certified cable entries and installation practices are mandatory.

Commissioning

During commissioning, the operator should verify the pipe size, flow direction, electrode material, lining, output range, communication parameters, empty-pipe settings, totalizer units, and alarm limits. The line should be filled and purged of air before performance is evaluated.

Initial readings should be compared with pump curves, temporary reference instruments, process calculations, or another reliable measurement source where available. Any significant discrepancy should be investigated systematically rather than corrected by changing the calibration factor without understanding the cause.

Maintenance and Long-Term Reliability

The VE15 is designed for low mechanical maintenance, but it still requires periodic inspection. Operators should check the enclosure, cable glands, display or local interface, grounding connections, mounting assembly, valve condition, and signs of corrosion or leakage. In wastewater and slurry applications, the probe may require cleaning if deposits accumulate on the electrodes or lining.

Routine verification can include reviewing zero-flow stability, comparing totalized volume with operational records, checking diagnostic messages, and confirming that the output signal reaches the control system correctly. In critical systems, an inspection schedule should be established based on the consequences of measurement failure, medium characteristics, accessibility, and local regulations.

If the pipeline is opened for maintenance, the probe and mounting connection should be inspected for mechanical damage. High-velocity abrasive service may require more frequent checks than clean-water service. For buried or flooded installations, the enclosure and cable termination should be verified after extreme weather or chamber flooding.

Long-term reliability depends on correct original selection. A meter designed for clean water may not be suitable for hot chemical liquor, abrasive tailings, or an explosive atmosphere without material, protection, and certification changes. Application review is therefore part of maintenance planning, not merely a purchasing step.

Selection Checklist

Before ordering a VE15 Insertion Electromagnetic Flowmeter, the following information should be prepared:

• Nominal pipe diameter and actual internal diameter.
• Pipe material, wall thickness, lining, and external coating.
• Minimum, normal, and maximum flow rate.
• Expected flow velocity range.
• Liquid conductivity and conductivity variation.
• Liquid temperature and pressure.
• Density, viscosity, solids concentration, and particle size where relevant.
• Required accuracy and repeatability.
• Installation orientation and available straight-run lengths.
• Required insertion connection, valve arrangement, or flange standard.
• Wetted material requirements, including lining and electrode material.
• Required enclosure protection class.
• Hazardous-area classification, if applicable.
• Power supply available at the installation site.
• Analog, pulse, relay, and digital communication requirements.
• Local display, remote converter, or split installation requirements.
• Applicable national, regional, and project standards.

Providing complete process data allows the manufacturer to select the correct probe length, electrode construction, converter configuration, pressure rating, communication option, and installation accessories. It also helps avoid unnecessary redesign after the purchase order has been released.

Advantages for EPC Contractors and End Users

For EPC contractors, the VE15 can simplify the engineering of large-diameter flow measurement points. Its insertion form factor reduces the physical envelope of the meter and can make equipment layout, transportation, lifting, and installation planning easier. Communication options support integration into common automation architectures, while available DIN and ANSI/ASME connection standards help accommodate international project requirements.

For end users, the main value is often the combination of reliable measurement and lower lifecycle burden. The absence of moving parts reduces mechanical wear. The low-obstruction design limits pressure loss. The large nominal size range covers applications where full-bore meters become expensive. Multiple protection and communication options allow the same basic instrument concept to be adapted to municipal, industrial, environmental, and process installations.

For OEM partners, the product can be incorporated into packaged water systems, pumping skids, cooling-water packages, treatment modules, and industrial monitoring systems. A manufacturer with a broader flowmeter portfolio can also help OEMs standardize measurement technology across different package types while preserving the flexibility to select different principles for different media.

Q&A

What type of liquid can the VE15 measure?

The VE15 measures electrically conductive liquids. Typical examples include raw water, treated water, wastewater, cooling water, chemical solutions, pulp, sludge, and conductive slurries. Conductivity must be confirmed during technical selection, especially for low-conductivity liquids or changing process compositions.

What pipeline sizes are covered?

The stated nominal pipeline range is DN200 to DN4000, approximately 8 to 160 inches. The exact probe, mounting arrangement, and installation method depend on the actual pipeline design and pressure conditions.

Does the meter create a significant pressure drop?

No. The insertion probe does not contain a turbine, orifice, or full-bore restriction. It introduces minimal additional pressure loss compared with many mechanical and differential-pressure flowmeters.

Can it measure wastewater containing solids?

Yes, electromagnetic measurement is suitable for many conductive wastewater and sludge applications because the instrument has no moving parts. However, abrasive solids, chemical compatibility, coating, and cleaning requirements must be evaluated before final material selection.

Is a full pipe required?

Yes. The pipeline should remain full at the measurement point. Partially filled pipes, open channels, and locations with persistent air pockets can produce unreliable readings and require a different measurement arrangement.

How accurate is the VE15?

Depending on the model and application, accuracy is specified as ±1.0% or ±1.5% of rate, with repeatability of approximately ±0.33% or ±0.5%. Field performance depends strongly on installation, pipe conditions, grounding, conductivity, and flow profile.

What communication protocols are available?

Available digital communication options include Modbus RS-485, HART, and Profibus. The instrument can also provide a 4–20 mA analog output and pulse output for integration with control and totalizing systems.

Can the flowmeter be installed outdoors?

Yes. IP65, IP67, and IP68 versions are available depending on the installation environment. The selected protection class must match the possibility of rain, washdown, flooding, temporary immersion, or burial-chamber installation.

Are hazardous-area versions available?

Ex d explosion-proof versions are available for suitable applications. The complete product certification, cable entry, wiring method, and installation must match the hazardous-area classification and local regulatory requirements.

What is the main advantage over a large full-bore flowmeter?

The main advantage is installation practicality. The insertion design can reduce equipment size, civil work, transportation requirements, shutdown duration, and project cost while still providing useful and stable flow measurement on very large pipelines.

What is the most important installation consideration?

Correct installation location and insertion geometry are critical. The pipe must remain full, the probe must be aligned correctly, and upstream and downstream disturbances should be minimized. Proper grounding and signal-cable installation are equally important.

Who can benefit from this product?

Municipal water companies, wastewater operators, irrigation authorities, industrial plants, mining companies, pulp and paper mills, EPC contractors, system integrators, and OEMs can benefit from the VE15 when they need conductive-liquid measurement on large pipelines.

Conclusion

The VE15 Insertion Electromagnetic Flowmeter addresses a clear engineering problem: how to measure conductive liquid flow reliably on large-diameter pipelines without the cost and disruption associated with a large full-bore meter. Its Faraday-law operating principle, absence of moving parts, minimal additional pressure loss, broad pipe-size range, and compatibility with water, wastewater, slurries, pulp, sludge, and selected chemicals make it a practical solution for demanding services.

Its performance is supported by a microprocessor-based converter, low-frequency rectangular excitation, flexible analog and digital outputs, stainless-steel construction, PTFE lining options, multiple electrode materials, and IP-rated or explosion-proof configurations. These features allow the instrument to serve both basic monitoring tasks and integrated industrial automation systems.

The strongest competitive advantage of an insertion flowmeter is not simply its compact size. It is the combination of retrofit flexibility, lower installation complexity, low pressure loss, reduced mechanical maintenance, and suitability for very large pipelines. When full-bore measurement is too costly, difficult to transport, or disruptive to install, the VE15 provides a technically credible alternative.

Jiangsu Vner Electronic Technology Co., Ltd. strengthens this product proposition through broad flow measurement experience, in-house calibration, SMD and SMT electronics manufacturing, engineering-based selection, certified quality processes, modern production facilities, and international project experience. Its ability to provide multiple flowmeter technologies also supports customers with varied process requirements.

As with any precision flow instrument, the final result depends on application engineering. Conductivity, pipe filling, flow profile, probe placement, grounding, materials, environmental protection, and communication requirements must all be reviewed before purchase. With these factors properly addressed, the VE15 can provide stable flow data for transmission mains, treatment plants, cooling systems, irrigation networks, industrial process lines, pulp operations, mining systems, and wastewater facilities over the long term.

References

1. Faraday, M. Experimental Researches in Electricity. Foundational work concerning electromagnetic induction and its relationship to conductive motion in a magnetic field.

2. International Electrotechnical Commission. Industrial-Process Measurement and Control Standards. General guidance for instrumentation performance, installation, and electrical integration.

3. International Electrotechnical Commission. Degrees of Protection Provided by Enclosures. Reference framework for IP65, IP67, and IP68 enclosure protection classifications.

4. International Electrotechnical Commission. Explosive Atmospheres Equipment and Installation Standards. General reference for hazardous-area equipment selection and installation.

5. Instrumentation engineering practices for electromagnetic flow measurement, including conductivity verification, grounding, straight-run evaluation, pipe filling, and signal-cable installation.

6. Manufacturer technical information for the VE15 Insertion Electromagnetic Flowmeter, including product construction, operating ranges, materials, outputs, communication options, and application guidance.

Product: VE15 Insertion Electromagnetic Flowmeter
