High-Precision Electromagnetic Flowmeters for Demanding Industrial Applications

Accurate flow measurement is essential wherever liquids and slurries must be transferred, controlled, balanced, dosed, or recorded. In water networks, chemical plants, power stations, pulp mills, oil and gas facilities, and general manufacturing plants, the flowmeter is often a critical source of process information. A measurement error can affect production quality, energy consumption, equipment protection, regulatory reporting, and operating cost. For this reason, industrial users increasingly require instruments that combine high accuracy, stable long-term operation, low maintenance, broad material compatibility, and reliable communication with modern control systems.

The VE11 high-precision electromagnetic flowmeter is designed for these requirements. It is a full-bore magmeter for electrically conductive liquids and slurries. Using Faraday’s law of electromagnetic induction, the instrument measures volumetric flow without mechanical moving parts or an obstruction in the measuring tube. This construction gives the VE11 a strong technical advantage in applications where conventional mechanical meters may experience wear, pressure loss, viscosity sensitivity, or frequent maintenance.

Developed by Jiangsu VNER Electronic Technology Co., Ltd., the VE11 combines digital signal processing, programmable low-frequency rectangular excitation, flexible lining and electrode options, multiple communication protocols, and compact or remote converter configurations. It is intended for demanding industrial environments in which measurement stability and product configurability are as important as nominal accuracy.

With nominal diameters from DN3 to DN2000, accuracy options reaching ±0.2% of rate, bidirectional measurement, IP65/IP67/IP68 protection options, and a wide selection of wetted materials, the VE11 can be engineered for both small process lines and large transmission pipelines. Its operating concept is straightforward, but its practical value is based on the precision of its sensor construction, electronics, calibration, material selection, and manufacturing control.

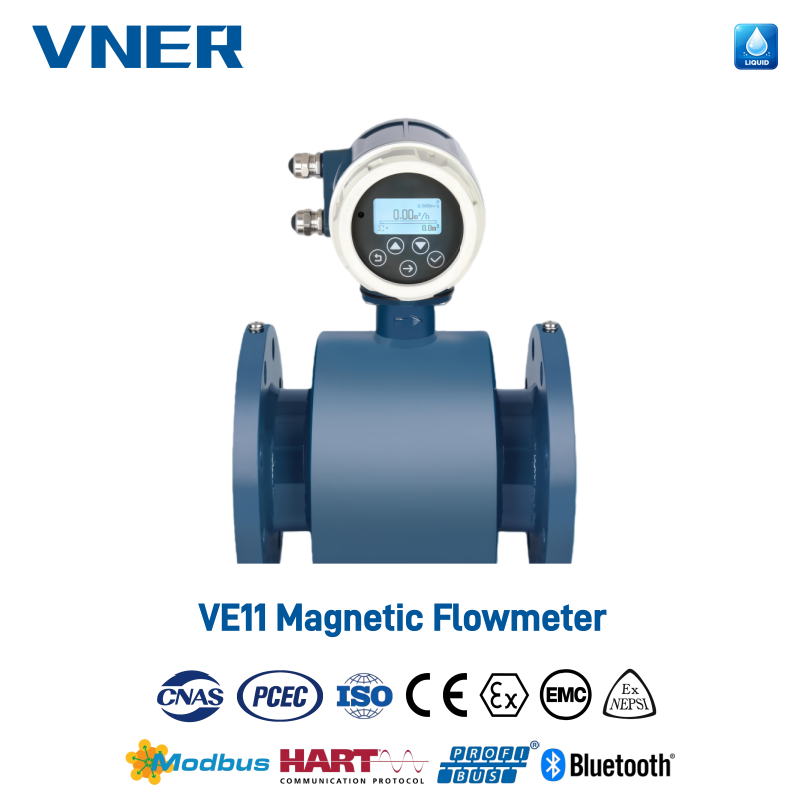

VE11 High-Precision Electromagnetic Flowmeter

Understanding Electromagnetic Flow Measurement

An electromagnetic flowmeter measures the movement of a conductive fluid through a magnetic field. When a conductive medium moves through the field, a voltage is induced between electrodes installed on opposite sides of the measuring tube. This voltage is proportional to the average velocity of the fluid. The converter receives the low-level electrode signal, processes it, and converts it into a flow indication, totalized value, current signal, pulse signal, or digital communication output.

The operating principle is based on Faraday’s law of electromagnetic induction. Unlike turbine meters, the instrument does not depend on a rotating impeller. Unlike positive-displacement meters, it does not use chambers, gears, or pistons to establish a measured volume. Unlike differential-pressure meters, it does not require a primary restriction that creates a permanent pressure loss.

The fluid must have sufficient electrical conductivity for the electrodes to detect the induced signal. Standard VE11 applications generally involve liquids and slurries with conductivity of approximately 20 μS/cm or higher. Low-conductivity options can support applications down to approximately 1 μS/cm, depending on the specific model, calibration, installation, and process conditions.

Because the meter measures velocity across an unobstructed bore, its reading is largely independent of fluid density and viscosity. This is particularly valuable when the process fluid changes concentration, temperature, or composition. In contrast, meters that rely on mechanical movement or pressure relationships may require additional compensation or may be more sensitive to changes in fluid properties.

The VE11 can measure forward and reverse flow. Bidirectional capability is useful in pipelines where flow may reverse during pump switching, cleaning cycles, tank transfer, process changeover, or temporary system conditions. It also allows the control system to distinguish between positive and negative flow rather than simply losing information when the direction changes.

Core Product Advantages

No Moving Parts and Minimal Mechanical Wear

One of the most important advantages of the VE11 is its lack of moving parts. There is no impeller, rotor, bearing, gear, or displacement chamber inside the measuring tube. As a result, the sensor is not subject to the mechanical wear mechanisms that affect many traditional flowmeter designs.

This construction is especially beneficial when measuring wastewater, sludge, chemical liquids, fibrous stock, or other media that may contain suspended solids. Mechanical components can be damaged by abrasive particles or blocked by fibres and deposits. The full-bore electromagnetic design provides a more tolerant measurement path for many such fluids, provided that the selected liner and electrodes are compatible with the medium.

The absence of moving parts also reduces routine maintenance. Users do not normally need to replace bearings, inspect turbine blades, or clean an internal mechanical assembly at regular intervals. Maintenance teams can instead concentrate on installation integrity, grounding, cable condition, electrode status, and process compatibility.

Unobstructed Flow Path

The VE11 uses a full-bore measuring tube without an internal restriction. This creates negligible additional pressure loss compared with the same pipe operating without a meter. The benefit is important in long pipelines, pumped water systems, energy-intensive utility networks, and applications where every unit of pressure contributes to operating cost.

A low-loss flow path can help reduce the duty required from pumps. It may also support the use of smaller pumps, lower operating speeds, or more efficient hydraulic control, depending on the overall system design. In gravity-fed systems, maintaining available head can be essential for reliable operation.

The unobstructed bore also reduces the possibility of internal blockage. Solids, fibres, and suspended matter can pass through the meter more easily than through a meter containing a narrow passage or mechanical assembly. This does not eliminate the need for correct sizing and installation, but it provides a strong advantage in solids-bearing service.

Stable Accuracy Across Changing Process Conditions

The VE11 is available in accuracy classes of ±0.2%, ±0.3%, or ±0.5% of rate, depending on the model and selected option. This range allows users to balance measurement performance and project cost according to the process requirement. High-accuracy configurations are suitable for critical utility measurement, dosing support, process balancing, and applications where a small error can create a significant financial or operational impact.

Repeatability is typically specified at approximately 0.07% to 0.16% of rate. Repeatability is important in batch processes and control systems because the instrument must provide consistent results when the same operating condition is repeated. A stable and repeatable signal helps plant operators identify actual process changes rather than fluctuations caused by the measurement system.

Because the measurement principle is based on fluid velocity and induced voltage, the reading is largely independent of pressure, density, and viscosity when the meter is correctly installed and the fluid remains conductive. This makes the VE11 suitable for fluids whose viscosity changes with temperature or concentration. Examples include chemical solutions, process water, brines, and certain industrial slurries.

Wide Measuring Range

The specified fluid velocity range is approximately 0.3 to 10 m/s. This broad range allows the meter to serve low-flow monitoring, normal process flow, and higher-velocity transfer duties. Correct sizing remains essential. Selecting a diameter solely to match the existing pipe can result in a velocity that is too low for the desired accuracy or too high for the liner and process conditions.

Engineering selection should consider minimum, normal, and maximum flow; fluid conductivity; temperature; pressure; solids concentration; viscosity; pipe size; liner material; electrode material; and the expected flow direction. A properly sized meter provides a better signal-to-noise ratio, supports reliable empty-pipe detection, and helps prevent unnecessary wear or erosion at high velocities.

Broad Diameter Coverage

VE11 sensors are available from approximately DN3 to DN2000, or about 1/8 inch to 80 inches. This range covers laboratory-scale and small process applications as well as major municipal and industrial pipelines.

Small-diameter meters can be used for chemical dosing, skid-mounted systems, and compact process equipment. Medium sizes are common in plant utilities and process lines. Large sizes support raw-water transmission, wastewater conveyance, district metering, cooling-water circulation, and other applications requiring high-volume measurement.

Large-diameter electromagnetic meters are particularly valuable in municipal and industrial infrastructure because they can measure high flow without introducing the pressure loss associated with a restriction. Their performance depends on correct installation, suitable grounding, proper pipe filling, and stable upstream and downstream hydraulic conditions.

Materials for Chemical, Abrasive, and High-Temperature Service

Lining Selection

The internal liner separates the process fluid from the sensor body and provides the electrical insulation required for electromagnetic measurement. VE11 lining options include ETFE, PTFE, PPU, FEP, PFA, and ceramic, depending on the model and application.

PTFE, PFA, FEP, and ETFE are commonly selected where chemical resistance is important. They can be suitable for a range of acids, alkalis, brines, solvents, and aggressive process liquids, subject to concentration and temperature limitations. PPU can be considered for applications requiring a balance of abrasion resistance and chemical compatibility, including certain wastewater and slurry services.

Ceramic liners are intended for demanding conditions where high abrasion resistance, dimensional stability, and chemical resistance are required. In pulp and paper, mineral processing, chemical production, and other industries, ceramic construction can help extend service life when the fluid contains abrasive particles.

The maximum process temperature can reach approximately 200°C, depending on the liner, sensor design, and selected configuration. Temperature selection should always be based on the actual process envelope, including normal operation, startup, shutdown, cleaning cycles, and possible excursions.

Electrode Options

The electrode is in direct contact with the measured medium and therefore requires careful material selection. Available materials include 316L stainless steel, Hastelloy B or C, titanium, tantalum, platinum-iridium, and tungsten carbide.

316L stainless steel is appropriate for many general water and industrial liquid applications. Hastelloy alloys provide improved resistance in selected aggressive chemical environments. Titanium can be useful in applications involving chlorides, seawater-related service, or other media for which titanium is compatible. Tantalum is selected for certain highly corrosive chemical services, while platinum-iridium can support specialized chemical and process requirements.

Tungsten carbide is an option for selected abrasive applications. It may be considered when the process contains suspended solids or particles that could accelerate electrode wear. The final choice must be confirmed against the fluid’s chemical composition, concentration, temperature, pressure, and abrasive characteristics.

Sensor Body and Connection Design

Sensor body materials include carbon steel, 304 stainless steel, 316 stainless steel, and 316L stainless steel. These materials allow the instrument to be adapted to general industrial, corrosive, hygienic, and outdoor environments according to the project specification.

Flanged connections are available for DIN and ANSI/ASME standards. The connection standard, pressure class, face-to-face dimension, gasket material, and bolt arrangement should be confirmed during procurement. Nominal pressure options range from approximately 0.6 to 10 MPa, with ANSI 150 to ANSI 600 options depending on the flange class and specific construction.

Material flexibility is a significant advantage over instruments offered with only a limited combination of liners and electrodes. It allows the meter to be selected around the process rather than forcing the process to fit a standard sensor configuration.

Digital Signal Processing and Reliable Electronics

The VE11 uses digital signal processing and programmable low-frequency rectangular excitation. These features help the converter distinguish the flow-related electrode signal from electrical interference, electrode polarization, and other sources of measurement noise.

Industrial plants often contain variable-frequency drives, large motors, switching power supplies, welding equipment, and long cable runs. Such conditions can create electromagnetic interference that affects low-level measurement signals. Proper excitation, signal filtering, grounding, shielding, and digital processing are therefore essential to maintain stable output.

The VE11 converter is designed to provide high stability, low noise, and low power consumption. The converter interprets the electrode signal, applies configured parameters, calculates instantaneous flow, and manages outputs and diagnostics. Digital processing also supports parameter storage, range configuration, flow direction handling, empty-pipe detection, damping, totalization, and alarm functions where included in the selected version.

A stable signal is particularly important at low flow rates. When the measured voltage is small, electrical noise can represent a larger percentage of the signal. A carefully designed excitation and processing system helps the instrument maintain useful performance across its specified velocity range.

Outputs, Communication, and Control-System Integration

The standard output configuration includes 4–20 mA and pulse or frequency signals. The 4–20 mA output is widely used for instantaneous flow transmission to distributed control systems, programmable logic controllers, remote terminal units, and supervisory monitoring platforms. The pulse or frequency output can be used for totalizing, batch control, dosing confirmation, and independent flow counting.

Modbus over RS-485 and HART communication are available, with Profibus supported on selected models. These communication options make the VE11 suitable for plants that require both a conventional analog signal and digital access to measurement values, settings, status information, and diagnostic data.

Digital communication can reduce the need for local manual adjustments. Authorized technicians may be able to review process values, modify selected parameters, confirm alarm conditions, and support troubleshooting from a control room or maintenance workstation. This is particularly useful when sensors are installed in underground chambers, remote pumping stations, hazardous areas, or difficult-to-access process locations.

Communication integration also supports broader plant strategies such as asset management, predictive maintenance, energy monitoring, and production data analysis. Flow information can be combined with pressure, temperature, pump status, tank level, and quality data to provide a more complete view of the process.

Installation Requirements for Maximum Performance

Pipe-Filling Conditions

An electromagnetic flowmeter must be installed in a pipe that remains full during measurement. A partially filled pipe can create an incorrect relationship between the electrode signal and the actual flow area. Installations in downward-flowing open outlets, high points, or locations where air can collect should therefore be reviewed carefully.

Suitable installation locations include vertical upward-flow sections, low points in a piping system, and horizontal sections that remain completely filled. If the process layout cannot guarantee a full pipe, the engineering design should consider a different location, a controlled backpressure arrangement, or an instrument configuration with appropriate detection and process safeguards.

Upstream and Downstream Piping

The flow profile should be as stable as practical. Pumps, valves, elbows, reducers, tees, and other disturbances can create swirl or asymmetrical velocity profiles. The required straight-pipe lengths depend on the installation arrangement and the manufacturer’s technical guidance, but the general principle is to locate the meter away from severe disturbances wherever possible.

When space is limited, an engineering review should assess the actual piping geometry and the likely impact on accuracy. A correctly selected meter cannot compensate indefinitely for poor hydraulic installation. Proper alignment, full pipe conditions, suitable grounding, and correct gasket placement are equally important.

Grounding and Electrical Protection

Grounding provides a stable electrical reference for the measurement system and helps reduce interference. Grounding rings, grounding electrodes, or other arrangements may be required depending on the pipe material, liner, fluid, and installation configuration.

The converter and sensor should be protected against moisture, excessive vibration, chemical exposure, and temperature outside the rated range. Available ingress protection includes IP65, IP67, and IP68 depending on the version. IP68 configurations are particularly useful for buried chambers, flood-prone locations, and installations where the sensor may be exposed to prolonged immersion.

Power supply options include 24 V DC and 220 V AC, with wider 22–245 V options available for selected configurations. The power supply should be stable and correctly protected. Cable routing should separate low-level electrode cables from high-power conductors where practical.

Integral and Remote Converters

The VE11 can be supplied with an integral compact converter or a remote split converter. An integral design keeps the sensor and converter together and can simplify installation in accessible process areas with moderate temperature and vibration.

A remote converter is useful when the sensor is installed in a high-temperature location, a flooded chamber, a buried pipeline, or a vibration-prone area. It can also improve display access by placing the converter at eye level or in a more convenient control location. The remote cable arrangement must be installed according to the specified maximum distance, shielding requirements, and environmental conditions.

Built-In Diagnostics and Maintenance Benefits

The VE11 includes built-in self-diagnostics for coil condition, electrode status, and signal quality, depending on the selected configuration. Diagnostics help maintenance personnel distinguish between a genuine process change and a measurement-system problem.

Potential diagnostic information may support investigation of an open or damaged coil circuit, poor electrode contact, abnormal signal quality, empty-pipe conditions, wiring issues, or unsuitable grounding. Early identification of these conditions can reduce troubleshooting time and prevent prolonged uncertainty in plant operation.

Although the sensor has no moving parts, maintenance should not be ignored. Periodic checks may include inspecting the converter enclosure, confirming cable glands and covers, verifying grounding connections, reviewing alarm history, checking process compatibility, and comparing the flow indication with a reference or process balance where appropriate.

In slurry applications, deposits may form on electrodes or the liner if the process chemistry and velocity allow accumulation. The need for cleaning depends on the medium and the installation. If electrode coating is possible, the selected diagnostic functions and maintenance plan should account for it.

The combination of non-mechanical construction and diagnostic capability gives the VE11 an advantage in total ownership. Fewer wear components reduce routine service requirements, while diagnostic functions help focus maintenance on the areas most likely to affect measurement quality.

Applications Across Industrial Sectors

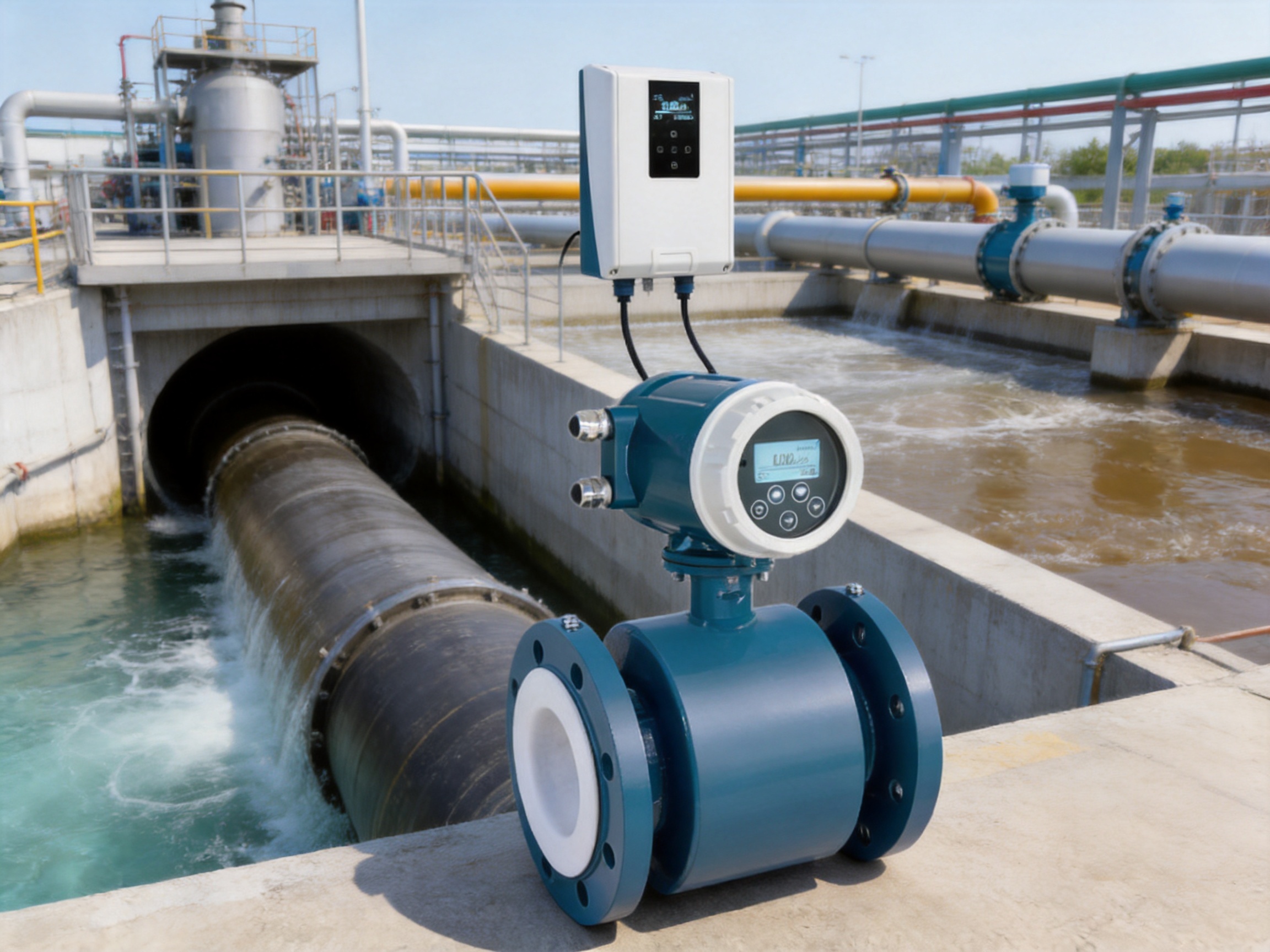

Water and Wastewater

Water and wastewater systems are among the most common applications for electromagnetic flowmeters. The VE11 can measure raw water, drinking water, treated water, wastewater, sludge, and other conductive liquids used in municipal and industrial facilities.

In transmission mains, large-diameter meters support flow accounting, distribution monitoring, zone balancing, and non-revenue-water analysis. In treatment plants, meters can monitor inlet flow, process circulation, return activated sludge, chemical dilution, and discharge. In sludge service, the unobstructed bore and absence of moving parts reduce the risk associated with fibrous or solids-bearing media.

A DN600 VE11 installed on a municipal transmission main can provide high-accuracy data for comparing supply and consumption across a defined zone. With IP68 protection and an appropriate liner, the meter can operate in a buried chamber exposed to occasional flooding. Reliable flow data helps operators identify leakage, abnormal demand, valve problems, and distribution imbalance.

Chemical and Petrochemical Processing

Chemical plants require careful attention to corrosion, temperature, pressure, and material compatibility. The VE11’s selection of polymer liners and corrosion-resistant electrode materials allows it to be configured for many conductive acids, alkalis, brines, and process solutions.

In reactor feed service, the flowmeter can support dosing, batch repeatability, recipe control, and material balance calculations. Accurate and repeatable measurement helps production teams confirm that the intended quantity of feedstock has entered the reactor. It can also provide an early indication of a blocked line, pump degradation, valve malfunction, or abnormal process demand.

For aggressive liquids, a PTFE or other suitable fluoropolymer liner can be combined with Hastelloy, tantalum, platinum-iridium, or another compatible electrode material. The final material selection must be based on the complete chemical profile rather than the product name alone.

Oil and Gas Facilities

Electromagnetic flowmeters are suitable for conductive process liquids in oil and gas operations, including produced water, injection water, utility water, and certain treatment chemicals. They are generally not intended for non-conductive hydrocarbon products unless the specific medium has sufficient conductivity for electromagnetic measurement.

Produced water and injection water can vary in composition, temperature, conductivity, and suspended solids. Since the VE11 is largely independent of density and viscosity, it can maintain useful measurement performance when these properties change within the application limits. Digital communication supports integration with central control systems and remote monitoring platforms.

For hazardous areas, Ex d explosion-proof variants are available for selected configurations. Certification, installation method, cable glands, and area classification must be confirmed for each project. The presence of an explosion-proof option does not replace the need for a complete hazardous-area installation design.

Power Generation and Energy Infrastructure

Power plants rely on water measurement for cooling, boiler feed, condensate return, makeup systems, and auxiliary equipment. The VE11 can help operators monitor flow distribution, evaluate pump performance, identify abnormal conditions, and improve energy management.

In cooling-water loops, stable measurement helps confirm that heat-exchange equipment receives the intended flow. In boiler and feedwater systems, flow information supports process control and balance calculations. In condensate return systems, it can help identify losses and improve water recovery.

Low pressure loss is particularly relevant in energy infrastructure. Any avoidable restriction may increase pump power demand, and the full-bore electromagnetic design avoids introducing a significant additional obstruction into the line.

Pulp and Paper

Pulp and paper processes involve water, fibre suspensions, white liquor, black liquor, bleaching chemicals, and other conductive fluids. These media can be chemically aggressive, abrasive, viscous, or solids-bearing.

The VE11 can be configured with ceramic or high-performance polymer liners and suitable electrode materials for selected liquor and stock applications. Its unobstructed bore allows fibre-containing suspensions to pass without a mechanical rotor. Stable measurement helps monitor process flow, chemical consumption, dilution, stock preparation, and liquor circulation.

General Industrial Manufacturing

General factories use conductive liquids in cooling systems, cleaning operations, utility networks, chemical dosing, surface treatment, and production lines. A configurable electromagnetic flowmeter can cover many of these duties with a common measurement platform.

Applications may include plant water, cooling circuits, cleaning solutions, conductive process fluids, neutralization systems, and wastewater discharge. The choice of liner, electrode, body, converter, output, communication protocol, and enclosure protection allows the instrument to be adapted to the actual environment.

Manufacturing Strengths and Quality Control

The performance of a precision flowmeter depends not only on its operating principle but also on the consistency of its manufacturing process. Sensor geometry, liner installation, electrode placement, coil construction, converter assembly, sealing, calibration, and final inspection all influence the finished product.

Jiangsu VNER Electronic Technology Co., Ltd. operates from Yangzhou, China, with approximately 23,000 square meters of modern facilities across three plants. The company has a technical team of more than 150 people and has delivered more than 2,000 engineering projects in over 30 countries. This project experience provides exposure to diverse process fluids, installation conditions, industrial standards, and customer requirements.

Since 2011, the company has focused on flow measurement products, including electromagnetic, Coriolis, vortex, swirl, turbine, thermal mass, ultrasonic, and metal tube rotameter technologies. This broad product portfolio gives its engineering team a wider understanding of flow measurement principles and application boundaries. It also allows the company to recommend different technologies when a specific medium or process does not suit electromagnetic measurement.

Engineering-Driven Product Selection

Accurate selection begins before production. Engineers must understand the minimum, normal, and maximum flow; fluid conductivity; process temperature; pressure; viscosity; density; solids content; chemical compatibility; pipe size; installation arrangement; hazardous-area requirements; and control-system interface.

VNER’s engineering approach emphasizes sizing and selection rather than treating every order as a standard instrument. This is important because a flowmeter that is technically accurate in a laboratory may not perform effectively if it is incorrectly sized, installed in a partially filled pipe, exposed to incompatible chemicals, or connected without appropriate grounding.

Application review can guide the choice of diameter, velocity range, liner, electrode, connection standard, converter location, enclosure protection, power supply, and communication protocol. This customized approach is valuable for EPC contractors and industrial end users managing projects with different standards across different countries.

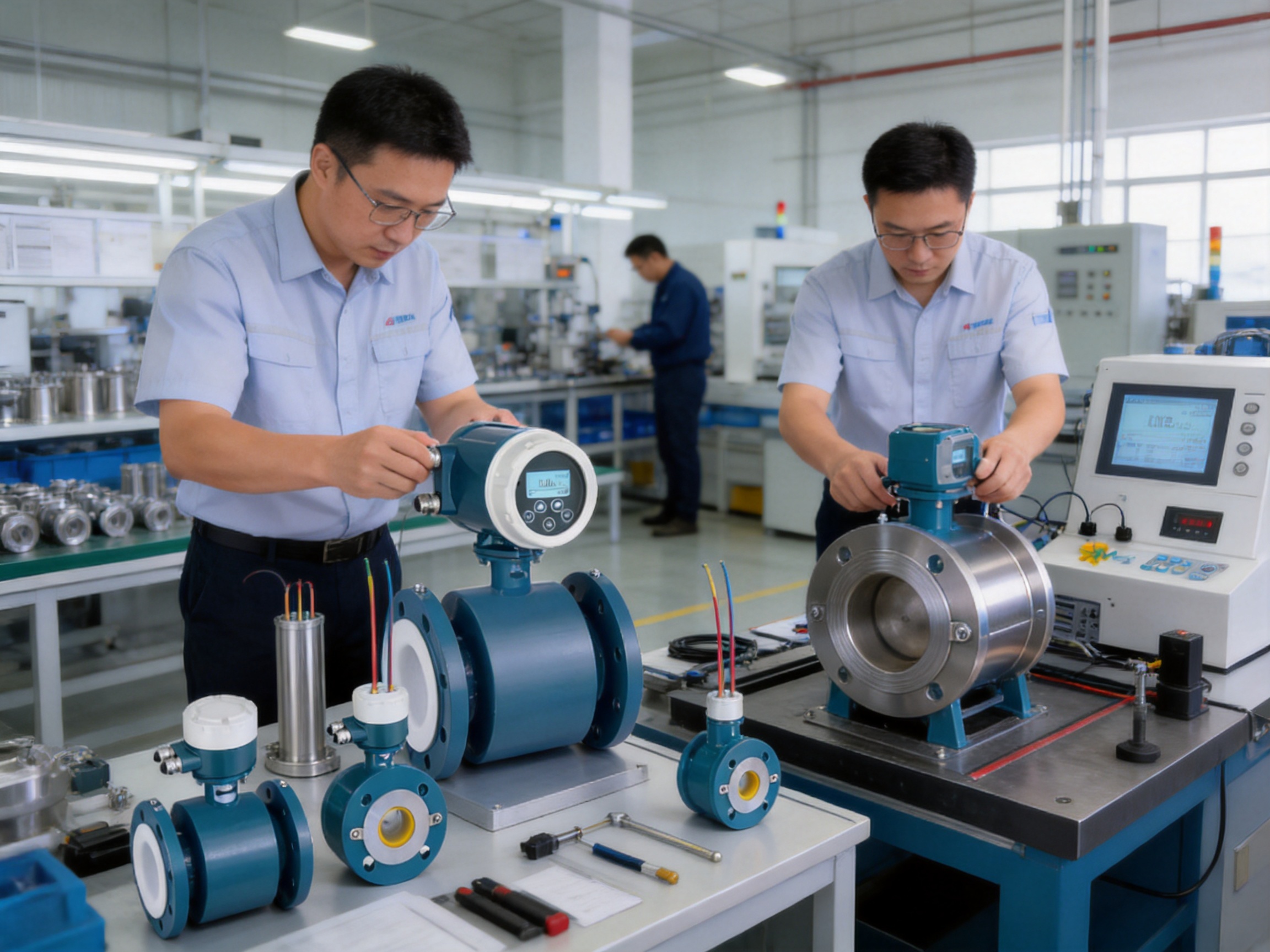

In-House Calibration

Calibration is a central part of flowmeter manufacturing. It provides a controlled comparison between the instrument output and a known reference. In-house calibration can support product consistency, traceability, and faster response to customer-specific requirements.

Calibration procedures should cover the requested flow range and the final configuration of the sensor and converter. The calibration result may be documented in a certificate supplied with the instrument. For critical measurement points, customers can use this documentation as part of commissioning records, quality files, and maintenance planning.

In-house capability also allows manufacturers to investigate performance issues more efficiently. If a customer reports an unusual reading, engineering and production teams can review configuration, calibration history, manufacturing records, and application information within a coordinated organization.

Certified Quality Processes

Quality control should extend beyond final calibration. Incoming materials, liner properties, electrode installation, coil integrity, enclosure sealing, electronics assembly, labeling, pressure integrity, and final configuration all require attention.

Certified quality processes help establish repeatable procedures for inspection and documentation. Traceability is particularly important when instruments are supplied for large water projects, chemical plants, energy facilities, or EPC packages where multiple meters may share similar specifications but have different tag numbers and calibration requirements.

Product certifications may include ISO, CE, and ATEX depending on the model and region. Certification availability must be confirmed for the exact product version and intended installation area. The company’s experience with international projects supports the preparation of documentation for different customer and regulatory environments.

Automated and Modernized Production

Increasing automation in manufacturing can improve repeatability in assembly and reduce variation between units. Automation is especially useful for processes that require consistent positioning, controlled fastening, repeatable electrical assembly, and accurate inspection.

Automation does not replace engineering judgment or skilled technicians. Instead, it supports a more stable production process by combining standardized work instructions, controlled equipment, inspection points, digital records, and trained personnel. This combination is important for instruments supplied in many sizes and configurations.

For the VE11, manufacturing discipline supports consistency in sensor construction, converter assembly, sealing, and calibration. Customers benefit when the instrument behaves predictably from one project to the next and when replacement or additional units can be configured using established product standards.

Advantages Compared with Alternative Flowmeter Technologies

Flowmeter selection should always be based on the medium and application. No single technology is suitable for every fluid. However, the VE11 offers several advantages when the process involves conductive liquids or slurries.

Requirement	Electromagnetic Flowmeter Advantage	Practical Result
Conductive liquid measurement	Measures velocity through an induced electrical signal	Suitable for water, wastewater, chemicals, brines, and many slurries
Low pressure loss	Full-bore tube with no internal mechanical obstruction	Reduced hydraulic impact and lower additional pumping demand
Suspended solids	No rotor, bearing, or displacement chamber	Better tolerance of many sludge, fibre, and slurry services
Changing viscosity or density	Measurement is largely independent of these properties	Stable readings when process conditions vary within limits
Bidirectional flow	Electronics can measure forward and reverse direction	Useful for transfer, flushing, and changing-flow systems
Maintenance	No moving parts to replace	Lower mechanical wear and fewer routine service components
Material compatibility	Multiple liners and electrode materials	Configuration for corrosive, abrasive, and high-temperature media
Plant integration	Analog, pulse, frequency, and digital communication options	Connection to PLC, DCS, SCADA, and asset-management systems

Compared with turbine meters, the VE11 avoids rotor wear and is less dependent on fluid viscosity and mechanical cleanliness. Compared with differential-pressure meters, it avoids a permanent restriction and does not require a pressure transmitter pair or square-root conversion for the basic measurement. Compared with positive-displacement meters, it offers a larger unobstructed path and fewer mechanical components. Compared with some ultrasonic arrangements, it can provide a compact full-bore solution with direct electrode-based sensing for conductive media.

These comparisons do not mean that the VE11 should replace every other technology. Gas, steam, very low-conductivity liquids, and certain hygienic or custody-transfer applications may require other flowmeter principles. The advantage of the VE11 is strongest when the process is conductive, the pipe can remain full, and low maintenance and low pressure loss are important.

Project and Lifecycle Benefits

Industrial users increasingly evaluate instruments according to total lifecycle value rather than purchase price alone. The initial cost is only one part of ownership. Energy consumption, spare parts, maintenance labor, downtime, recalibration, process losses, and data quality can have a larger long-term effect.

The VE11’s full-bore design helps limit additional pressure loss. Its non-mechanical construction reduces wear-related maintenance. Its material options help extend service life in corrosive or abrasive environments. Its communication and diagnostics support faster troubleshooting and better integration into plant management systems.

Stable measurement also improves operational decision-making. Reliable flow data supports pump optimization, chemical consumption control, water balance, production accounting, and early detection of abnormal operating conditions. In a municipal water network, improved measurement may help identify leakage. In a chemical plant, it may improve batch consistency. In a power plant, it may support cooling-water and energy optimization.

For EPC contractors, a broad product range and engineering support can simplify procurement. One experienced supplier can provide electromagnetic meters alongside Coriolis, vortex, swirl, turbine, thermal mass, ultrasonic, and rotameter products when a project includes different fluid types. This can reduce the number of technical interfaces and support more consistent documentation and service.

Selection Guide for the VE11

Before ordering a VE11, users should prepare a complete application data sheet. The following information is normally required for correct selection:

1. Fluid name and complete chemical composition.

2. Minimum, normal, and maximum flow rate.

3. Minimum, normal, and maximum temperature.

4. Minimum, normal, and maximum pressure.

5. Electrical conductivity, including expected variation.

6. Density, viscosity, solids concentration, fibre content, or particle size where relevant.

7. Existing pipe size and connection standard.

8. Required accuracy, repeatability, and totalization performance.

9. Forward-only or bidirectional operation.

10. Available power supply and required output signals.

11. Communication protocol, such as Modbus, HART, or Profibus.

12. Ambient temperature, humidity, vibration, flooding risk, and installation location.

13. Hazardous-area classification and required certification.

14. Preferred liner, electrode, and body materials if already specified by the process engineer.

15. Integral or remote converter arrangement.

Correct data improves the probability that the selected meter will operate near the intended velocity range and withstand the process environment for its expected service life.

Frequently Asked Questions

What type of fluid can the VE11 measure?

The VE11 is designed for electrically conductive liquids and slurries. Typical applications include raw water, drinking water, wastewater, sludge, acids, alkalis, brines, conductive process liquids, cooling water, condensate, liquor, and stock suspensions. Standard applications generally require conductivity of approximately 20 μS/cm or higher, while selected low-conductivity options may support values down to approximately 1 μS/cm.

Can the VE11 measure non-conductive oil or gas?

Electromagnetic flowmeters require electrical conductivity in the measured medium. They are therefore not normally suitable for dry gas or non-conductive hydrocarbon liquids. Produced water, injection water, utility water, and other conductive liquids in oil and gas facilities may be suitable after application review.

Does the meter have moving parts?

No. The VE11 uses an electromagnetic measuring principle and has no internal rotor, impeller, gear, bearing, or displacement chamber. This reduces mechanical wear and supports measurement of many liquids and slurries containing suspended solids.

Does the VE11 create pressure loss?

The full-bore sensor has no internal obstruction, so it introduces negligible additional pressure loss compared with a section of the same pipe. Normal pipe friction, fittings, valves, and installation effects remain part of the overall hydraulic system.

Can it measure reverse flow?

Yes. The VE11 supports bidirectional flow measurement. The converter can distinguish forward and reverse flow, which is useful in transfer systems, flushing operations, pump changeover, and pipelines where the direction may change.

What accuracy can be achieved?

Available accuracy classes include ±0.2%, ±0.3%, and ±0.5% of rate, depending on the model and option. Actual performance depends on sizing, calibration, installation, grounding, conductivity, process conditions, and the selected configuration.

What liner materials are available?

Available liner materials include ETFE, PTFE, PPU, FEP, PFA, and ceramic, depending on the model. The selection should consider chemical compatibility, temperature, abrasion, solids content, and cleaning conditions.

Which electrode material should be selected?

Options include 316L stainless steel, Hastelloy B or C, titanium, tantalum, platinum-iridium, and tungsten carbide. The correct material depends on the fluid composition, concentration, temperature, pressure, and abrasive properties. A chemical compatibility review should be completed before final selection.

Can the VE11 be installed outdoors or underground?

Yes, selected versions offer IP65, IP67, or IP68 protection. IP68 is suitable for certain buried or flood-prone installations. The exact enclosure rating, cable entry arrangement, remote converter configuration, and installation method should be confirmed for the site.

Is an explosion-proof version available?

Ex d explosion-proof variants are available for selected models. Hazardous-area certification is model- and region-dependent. Users must confirm the required area classification, certificate, temperature class, cable glands, and installation requirements before ordering.

What communication protocols are supported?

The VE11 supports 4–20 mA and pulse or frequency outputs. Modbus over RS-485 and HART communication are available, while Profibus is supported on selected models. The required protocol should be specified when placing the order.

What is the difference between an integral and remote converter?

An integral converter is mounted directly on the sensor and provides a compact arrangement. A remote converter is installed separately and connected to the sensor by cable. Remote installation is useful for high-temperature, high-vibration, buried, flooded, or difficult-to-access sensor locations.

Why is correct installation important if the meter is highly accurate?

Even a high-accuracy instrument can produce poor results if the pipe is partially filled, air enters the line, grounding is inadequate, the flow profile is severely disturbed, or the meter is installed near a strong hydraulic disturbance. Full-pipe conditions, suitable straight runs, correct alignment, grounding, and compatible process materials are essential.

How does the manufacturer support customized projects?

Jiangsu VNER Electronic Technology Co., Ltd. supports project-based selection involving diameter, liner, electrode, body, flange standard, power supply, output, communication, enclosure protection, converter arrangement, and certification. Its in-house calibration, engineering team, multiple manufacturing facilities, and experience with international projects support customized industrial requirements.

Conclusion

The VE11 high-precision electromagnetic flowmeter provides a practical combination of accuracy, mechanical simplicity, material flexibility, low pressure loss, digital integration, and long-term stability. Its full-bore design is well suited to conductive liquids and slurries, while the absence of moving parts reduces wear and maintenance requirements. The ability to measure bidirectionally and remain largely independent of pressure, temperature, density, and viscosity makes it valuable in changing industrial conditions.

Its performance is strengthened by a broad range of liners, electrodes, body materials, diameters, pressure classes, power supplies, communication protocols, enclosure ratings, and converter arrangements. These options allow the instrument to be engineered for municipal water networks, wastewater plants, chemical production, oil and gas water systems, power stations, pulp and paper mills, and general industrial applications.

The product’s value also depends on the manufacturing and engineering organization behind it. With modern facilities, in-house calibration, certified quality processes, application-focused selection, an experienced technical team, and an expanding automated production capability, Jiangsu VNER Electronic Technology Co., Ltd. is positioned to support both standard and customized flow measurement projects.

For users seeking dependable measurement of conductive liquids or slurries, the VE11 offers a strong alternative to mechanical and restriction-based flowmeters. When correctly sized, configured, installed, and commissioned, it can provide reliable data for process control, utility management, energy optimization, material balance, maintenance planning, and long-term industrial performance.

References

1. Faraday, M. Experimental Researches in Electricity, principles relating to electromagnetic induction.

2. International Organization for Standardization. ISO 6817, Measurement of conductive liquid flow in closed conduits using electromagnetic flowmeters.

3. International Electrotechnical Commission. IEC 60529, Degrees of protection provided by enclosures.

4. International Electrotechnical Commission. IEC 60079 series, Explosive atmospheres and equipment protection.

5. ASME B16.5, Pipe Flanges and Flanged Fittings.

6. DIN standards for industrial pipe flanges and flowmeter installation interfaces.

7. Manufacturer technical information for VE11 high-precision electromagnetic flowmeter configurations.

8. Industrial process measurement and instrumentation engineering practices for conductive-liquid flow measurement.

Product: VE11 High-Precision Electromagnetic Flowmeter
